SPECTRUM

Graduate - Systems Studio

Winter 2014

Collaborators:
Alina Granville
Katie Marcyan

Instructors:
Christina Hansen
Julia McMurrough



The proposal of the Systems Studio is to address the design of a student housing complex located at the University of Michigan's north campus. The site is about 25 acres and houses a minimum of 1,000  students with majors in Architecture, Art, Music and Engineering. Although all these majors study at the north campus facilities there is little to no interaction within the disciplines because the facilities are so segmented distant.

Focusing on collaborative spaces, diversity of living and social interactions, Spectrum embraces the great ideas that come from collaboration while revitalizing the social life of north campus. Featuring many amenities that go beyond just student housing Spectrum strives to become the new social hub of north campus inviting only the current students to collaborate but also students who do not currently reside or study on north campus.







Project Concept Video

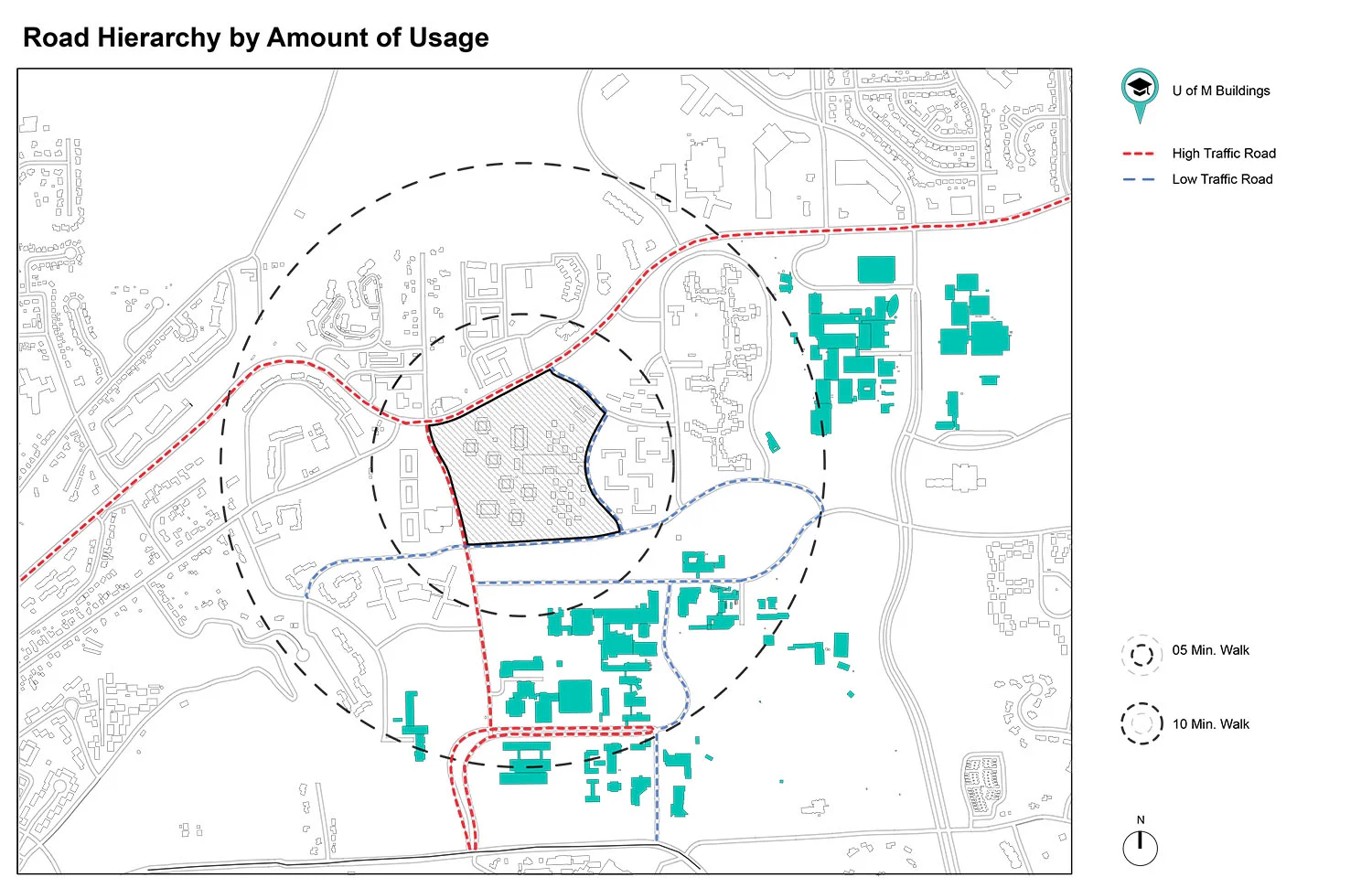

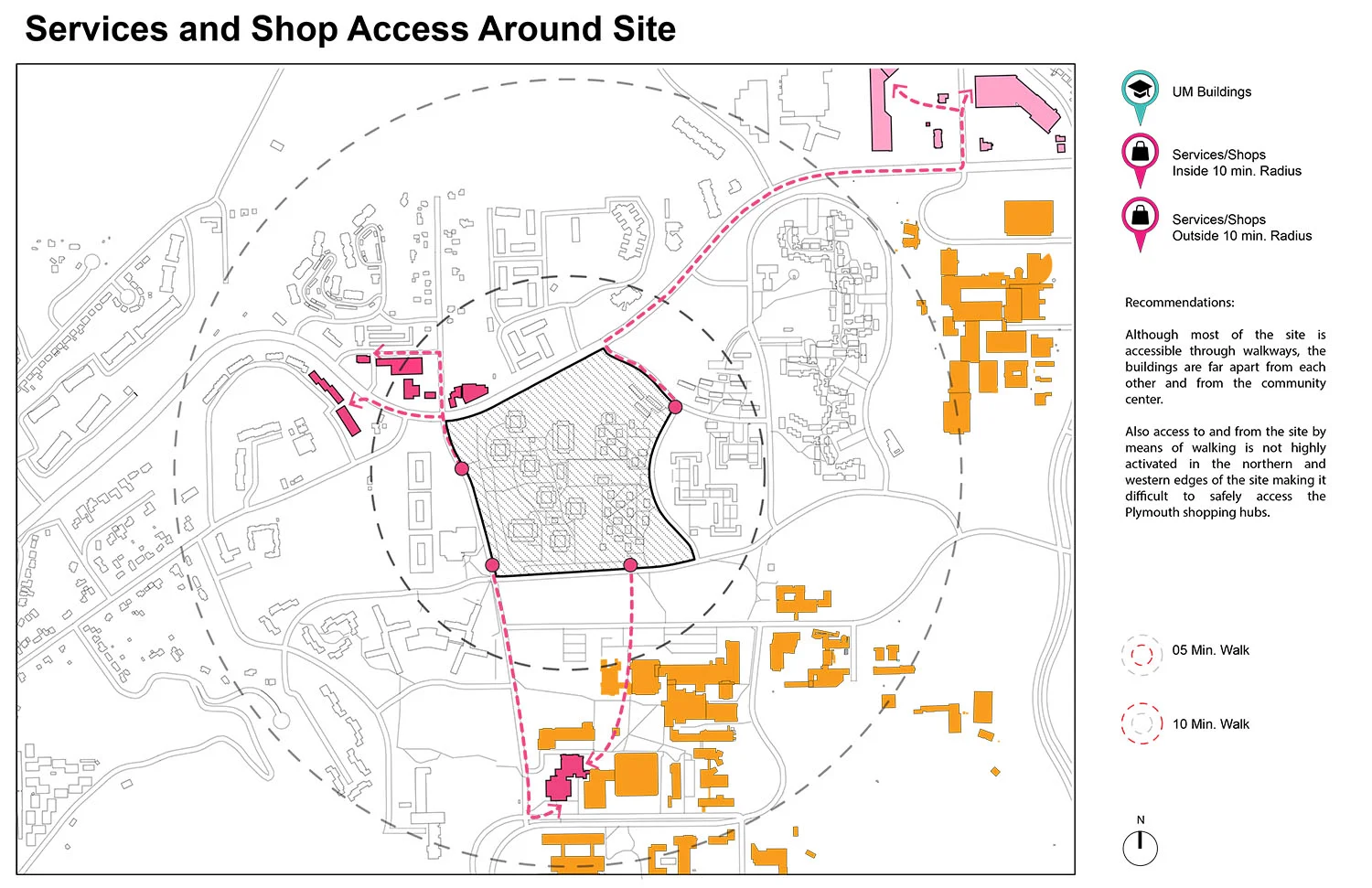

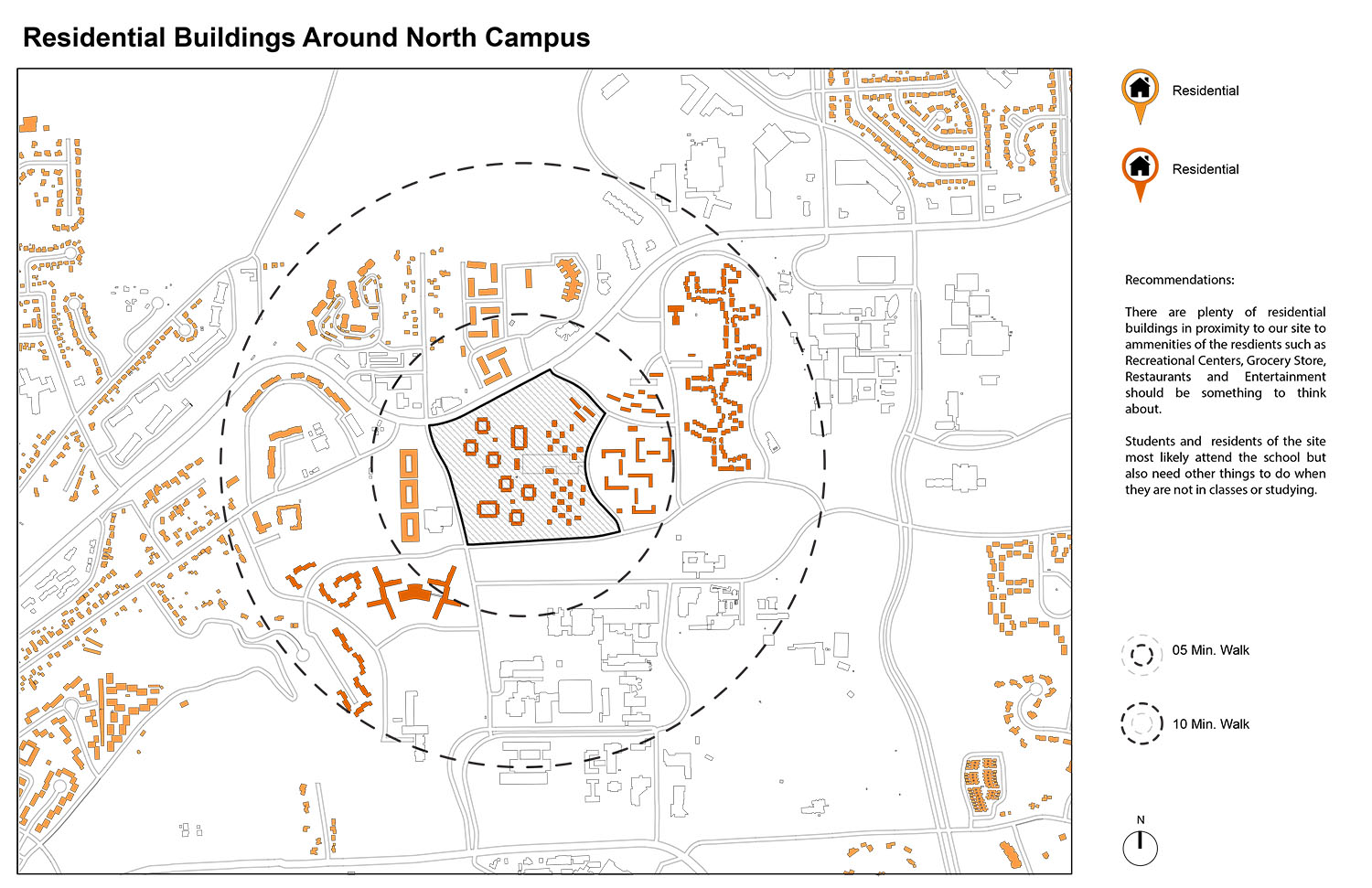

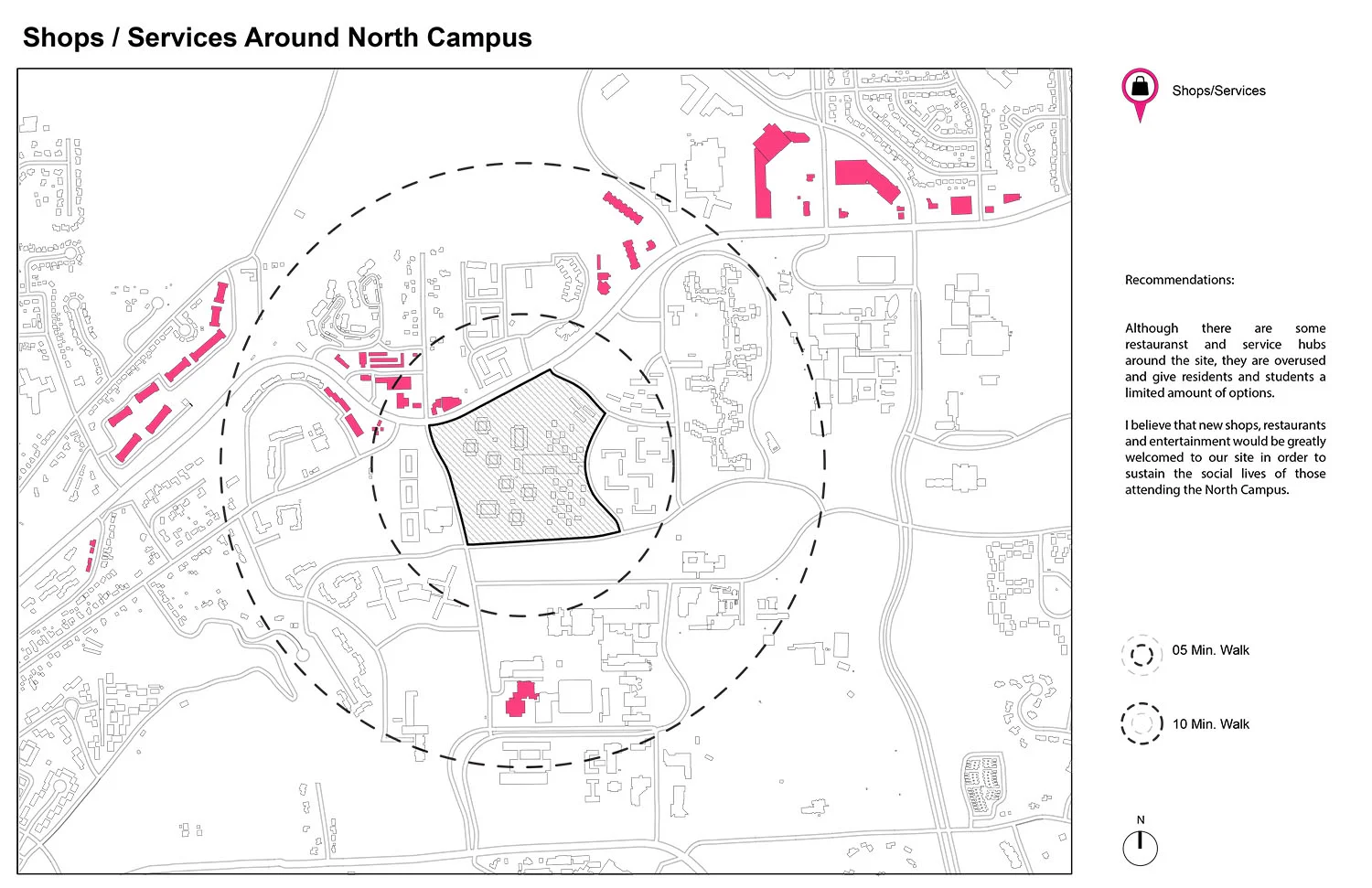

Site Studies

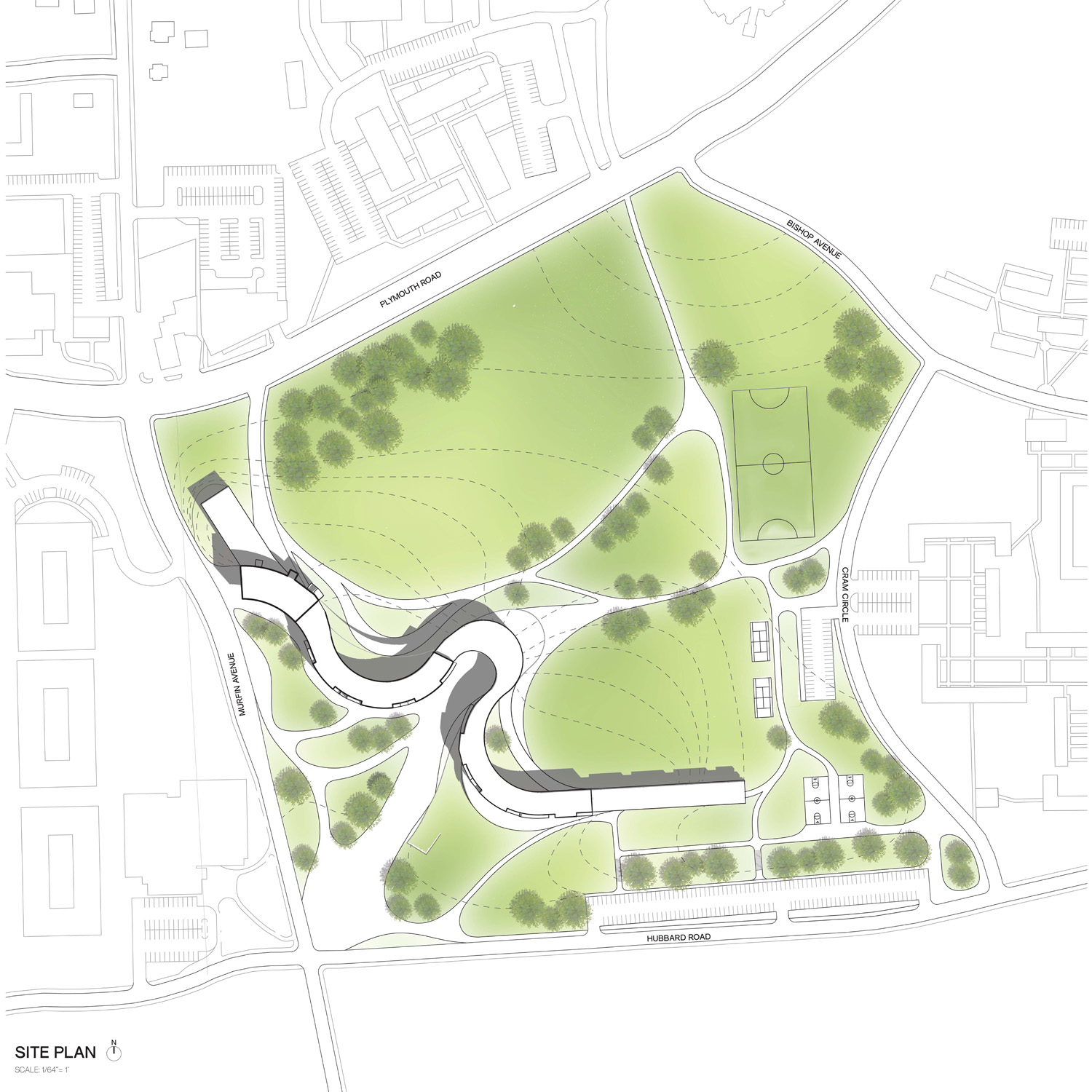

Site Plan

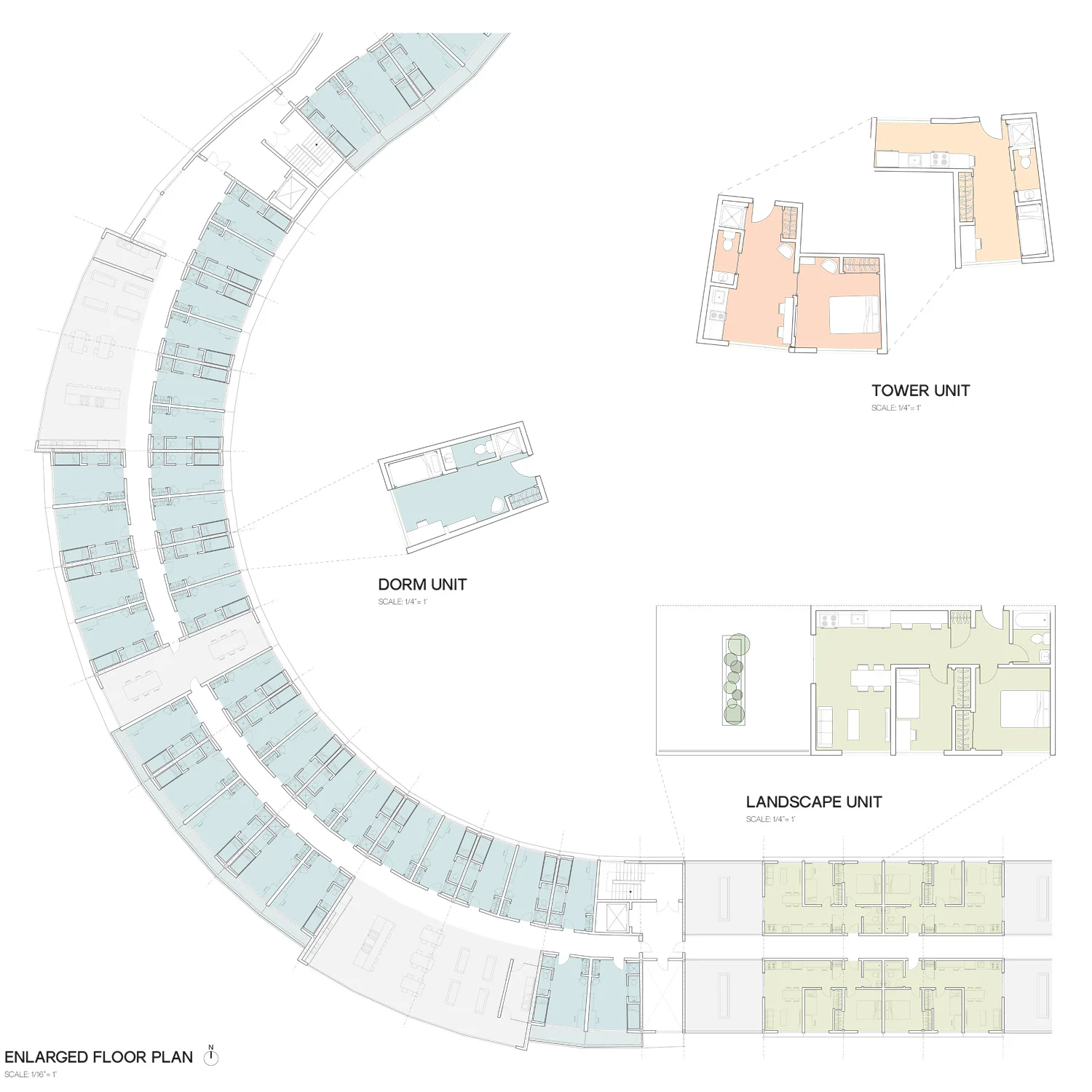

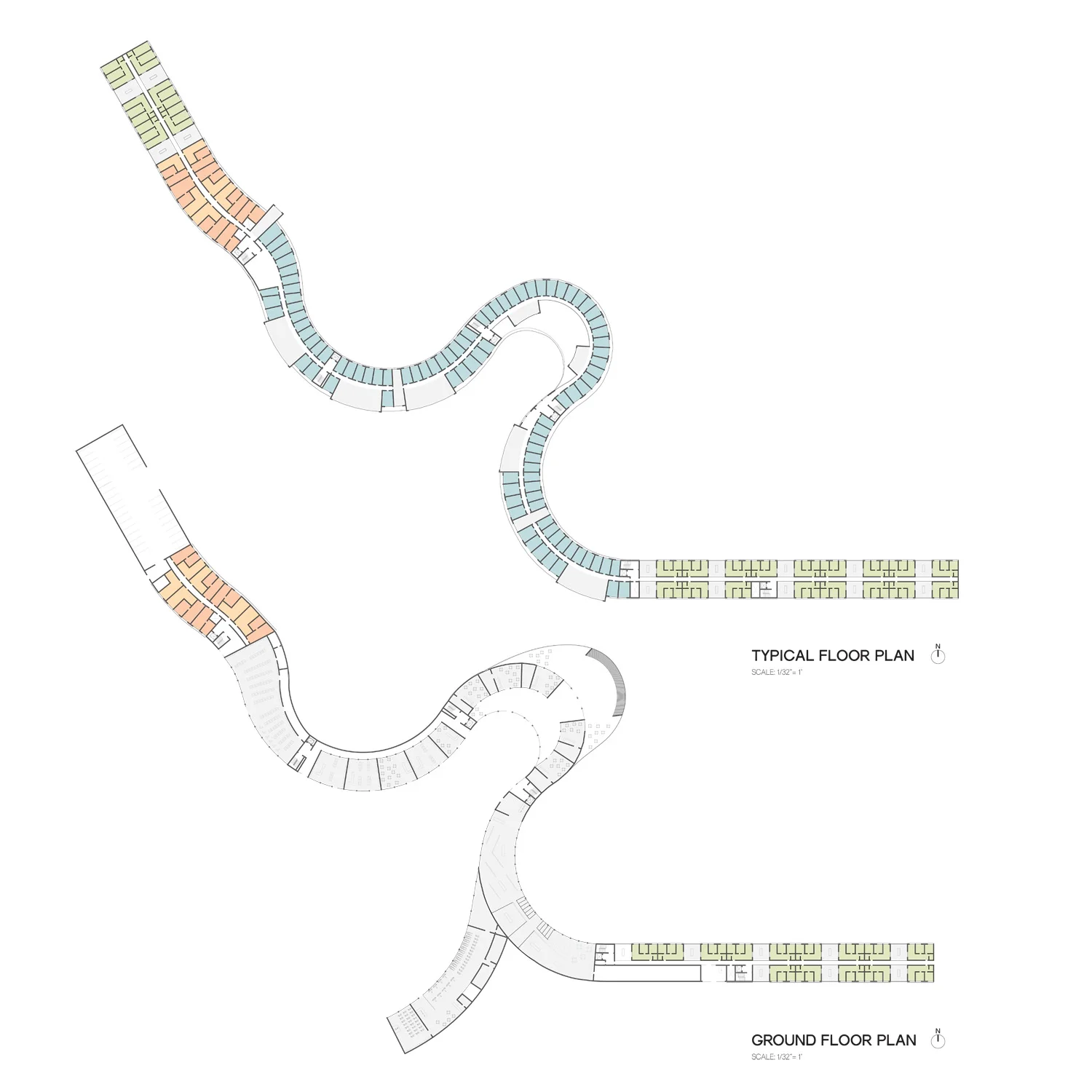

Building Massing and Floor Plans

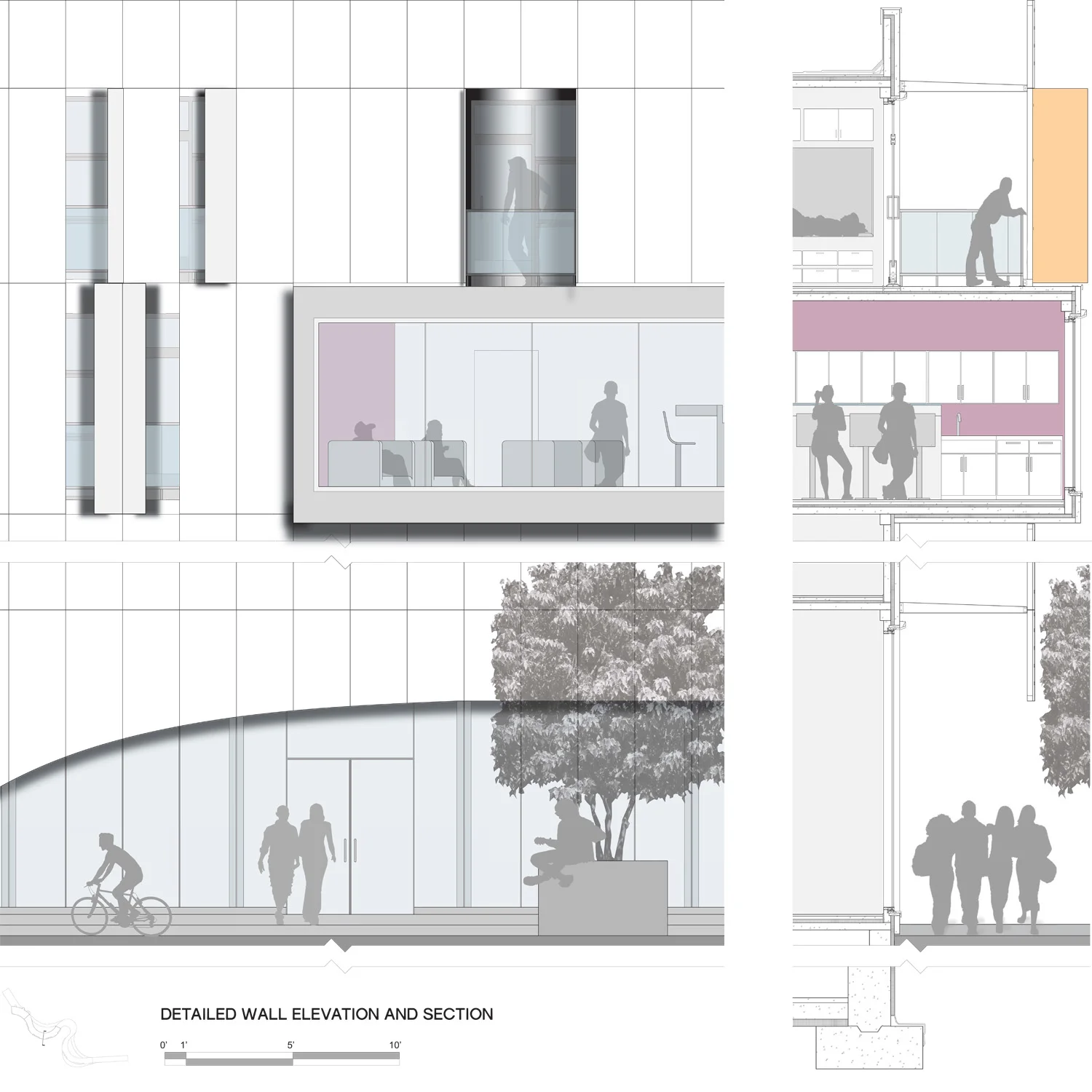

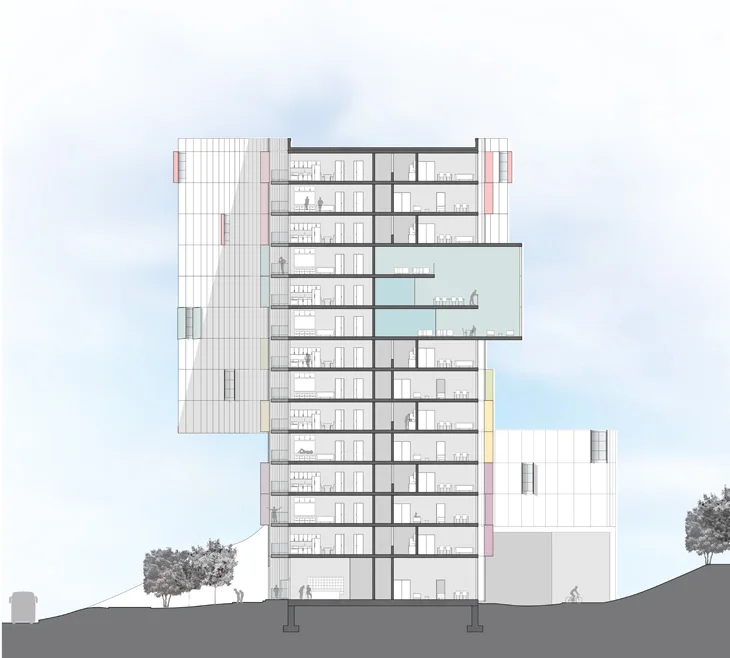

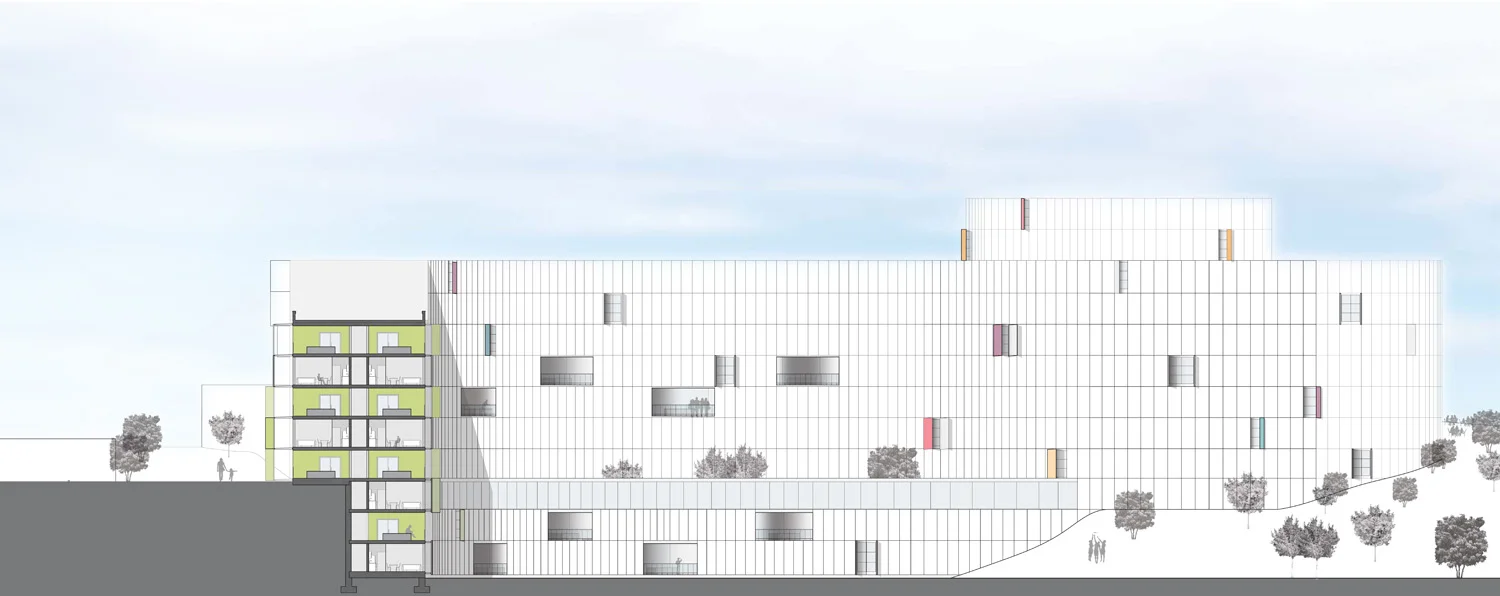

Site and Building Sections



Three Dimensional Views and Renderings

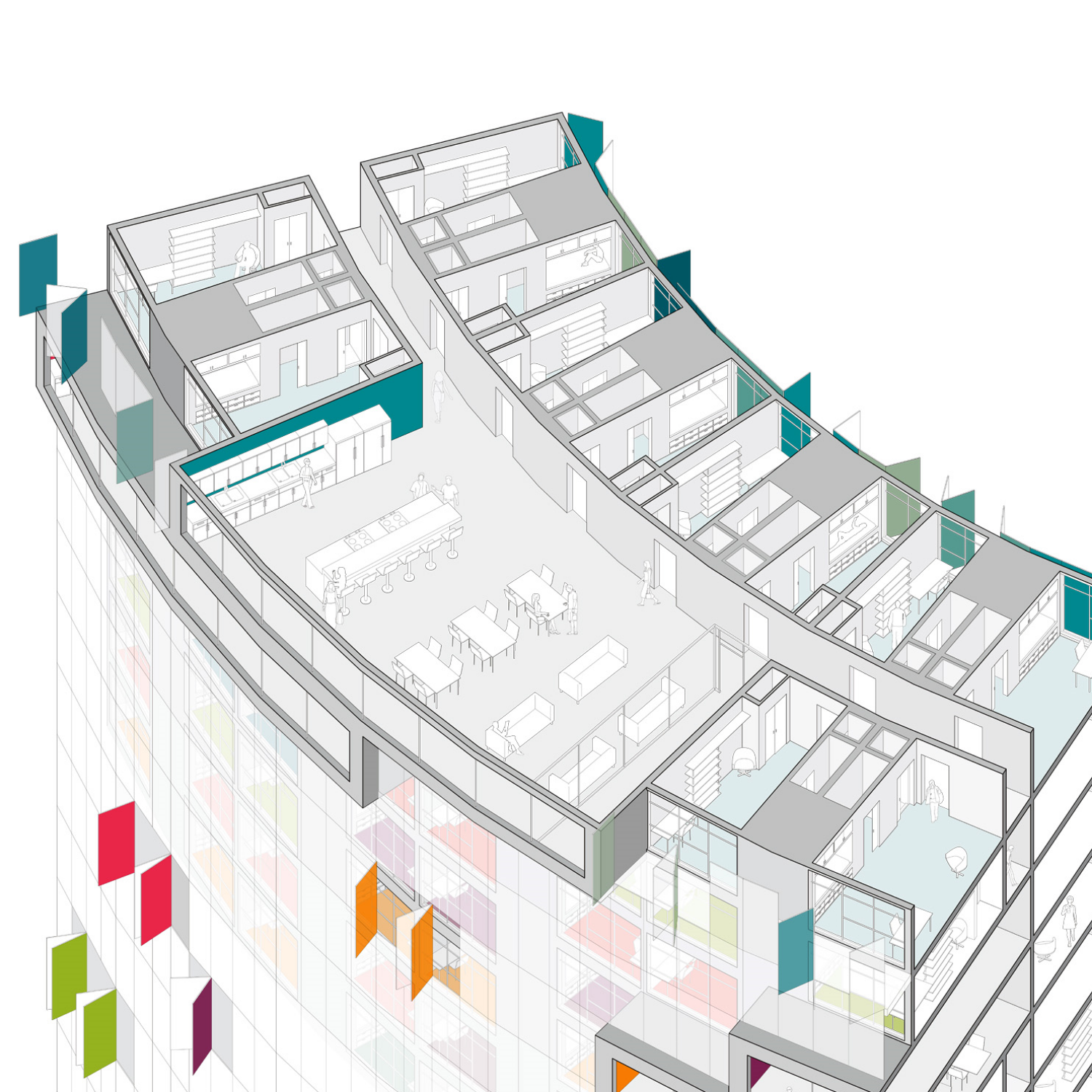

              Typical Floor Plan Axo

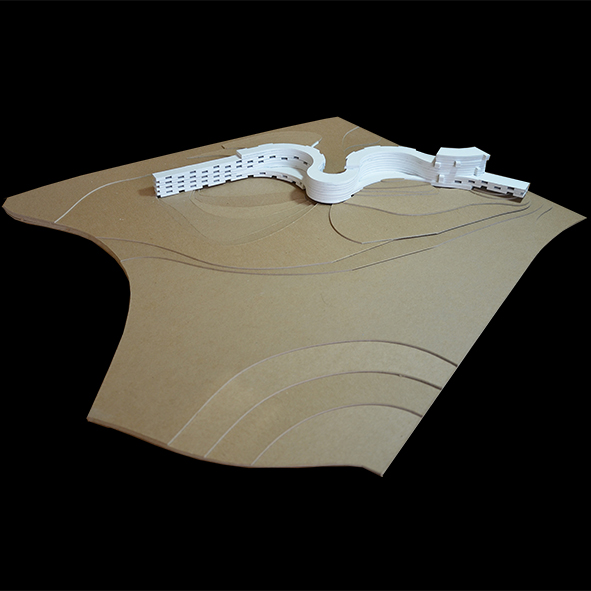

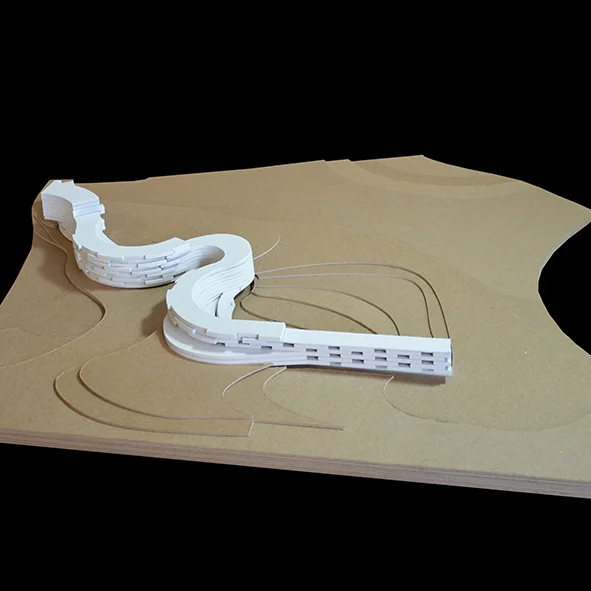

Site Model Pictures
